Socketweld End
It is a type of cap designed to cover the end of a pipe or valve that has a socket weld end connection. The Socket Weld End Cap is used to close the end of the pipe or valve, providing protection from contamination or damage, and is secured in place by welding it onto the socket end.

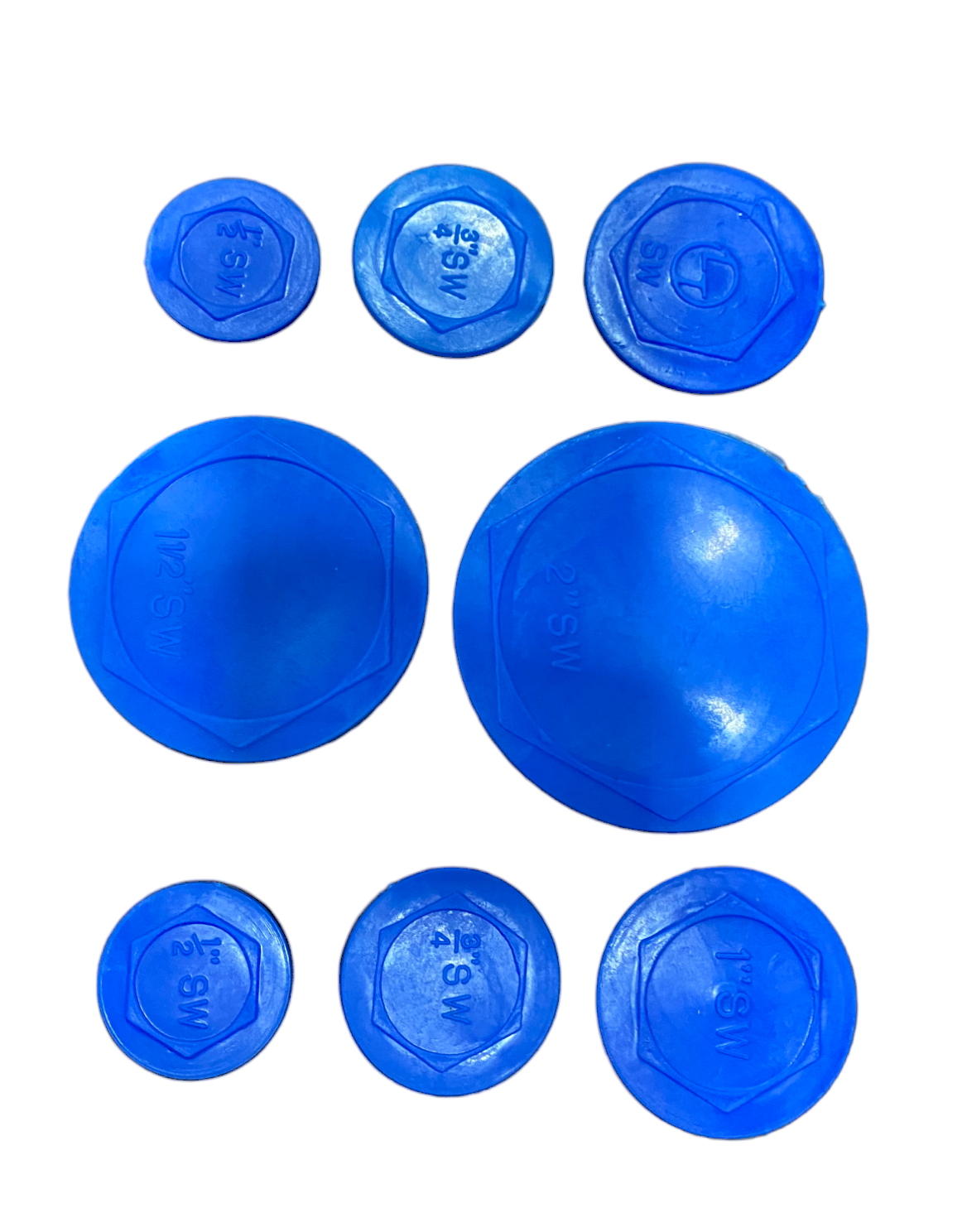

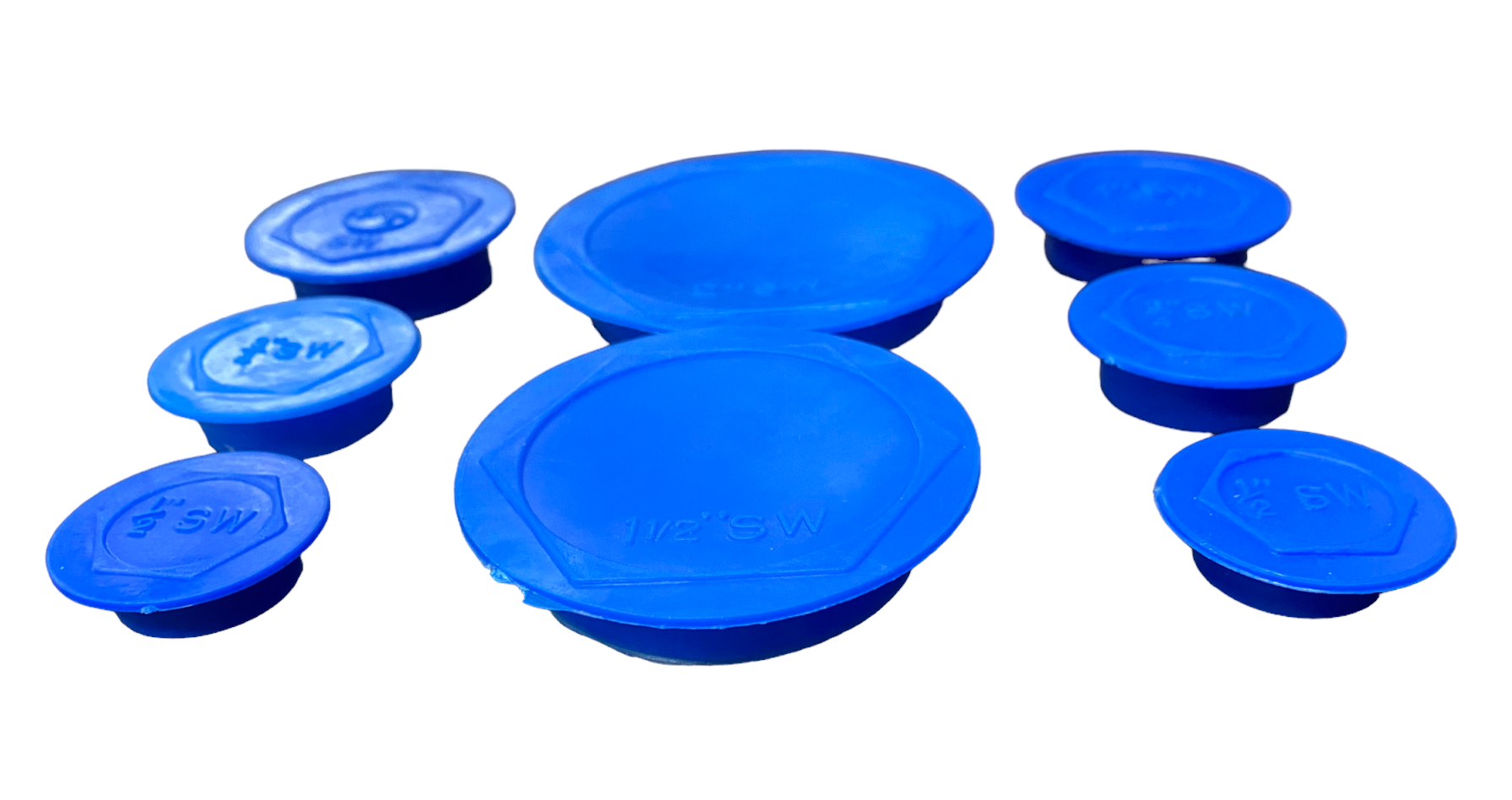

PLASTIC END PROTECTION FOR SOCKETWELD END

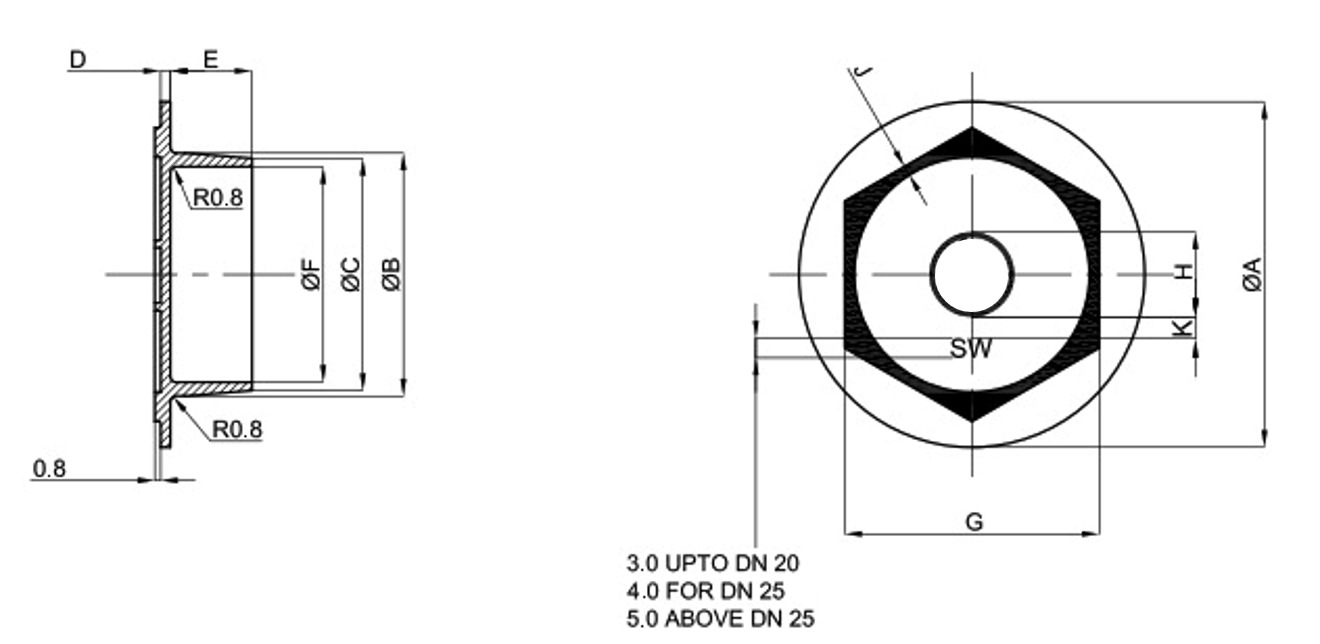

SIZE | A | B | C | D | E |
DN8 | 27 | 14.8 | 13.8 | 0.8 | 7 |
DN10 | 27 | 18.3 | 17.2 | 0.8 | 7 |
DN15 | 32 | 23 | 22 | 1 | 7.8 |
DN20 | 37 | 28 | 27 | 1.2 | 9 |
DN25 | 45.4 | 34.5 | 34 | 1.2 | 9 |
DN32 | 55 | 43.7 | 43 | 1.3 | 11 |
DN40 | 61.7 | 49.5 | 48.4 | 1.3 | 11 |
DN50 | 75 | 62 | 60 | 1.3 | 9.5 |
DN65 | 87.5 | 74.8 | 73.5 | 1.3 | 12.7 |
