Screwed End Cap

It is a type of valve that features a screw end connection for attachment to a pipeline. The valve body is equipped with an end cap that screws onto the valve body, providing a secure seal and closure of the pipeline.

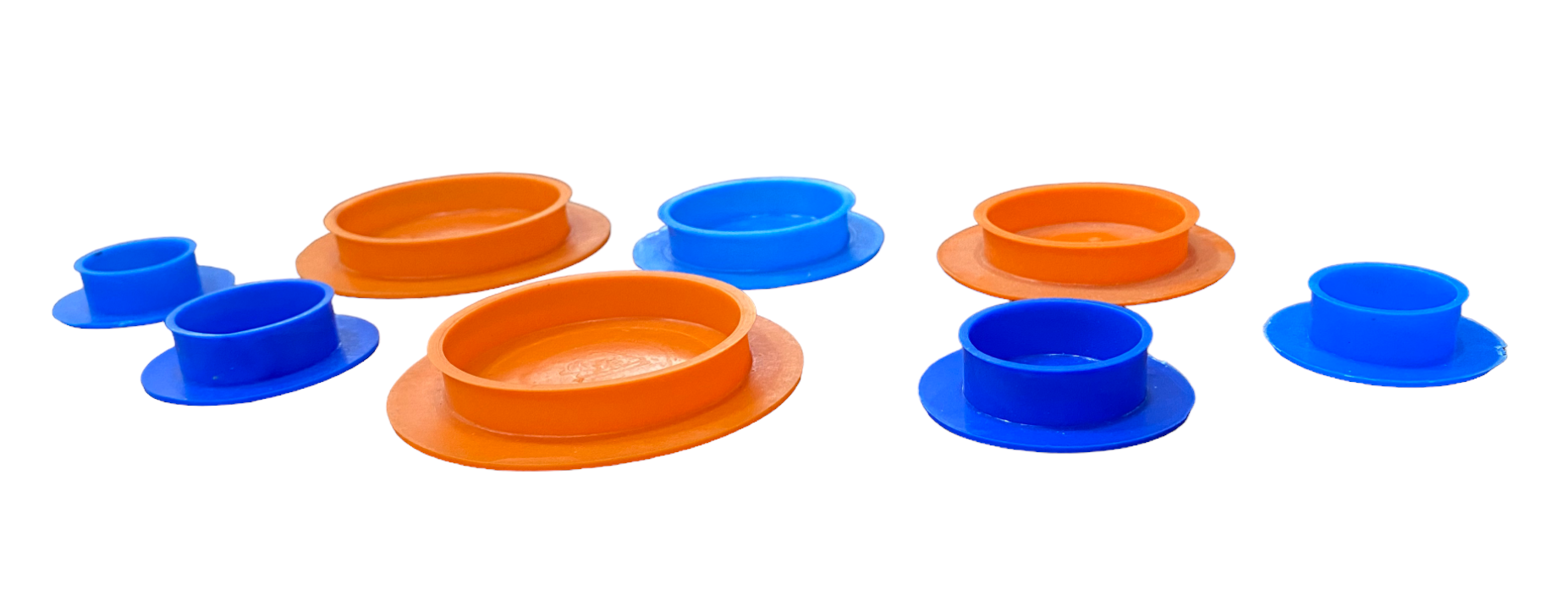

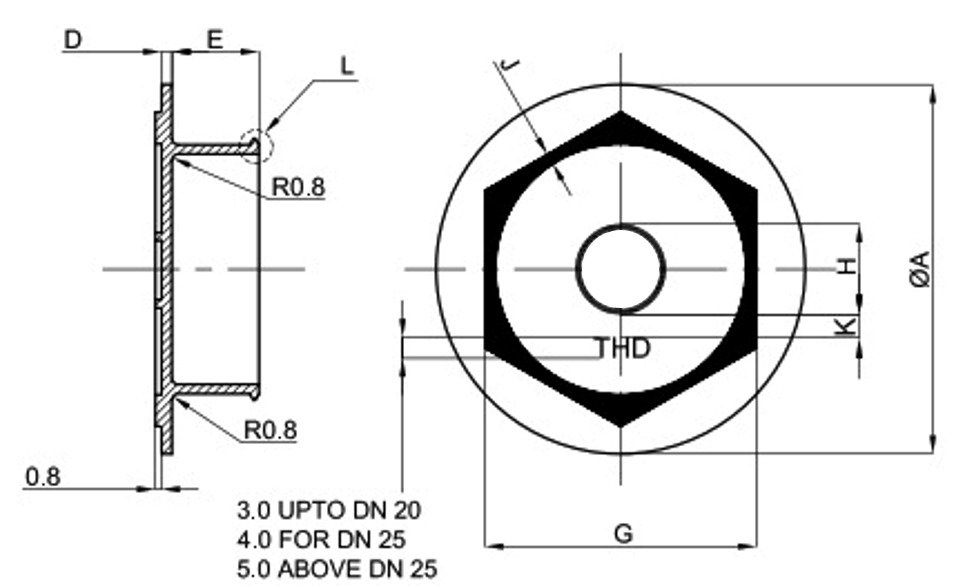

PLASTIC END PROTECTOR FOR SCREWED END VALVES




SIZE A B C D E
DN8 27 11.6 13 0.8 8.6
DN10 27 15.2 16.6 0.8 8.6
DN15 32 18.8 20.4 1.2 9.2
DN20 37.5 24.4 26 1.2 10
DN25 45 30.5 32 1.2 10.6
DN32 55 39.4 41 1.5 11.2
DN40 62 45.5 47 1.5 12.6
DN50 78.5 57.4 59 1.5 18
DN65 92 69.4 71 1.5 18
DN80 127 85.3 87 1.8 20
DN100 164 110.6 111.5 1.8 22
