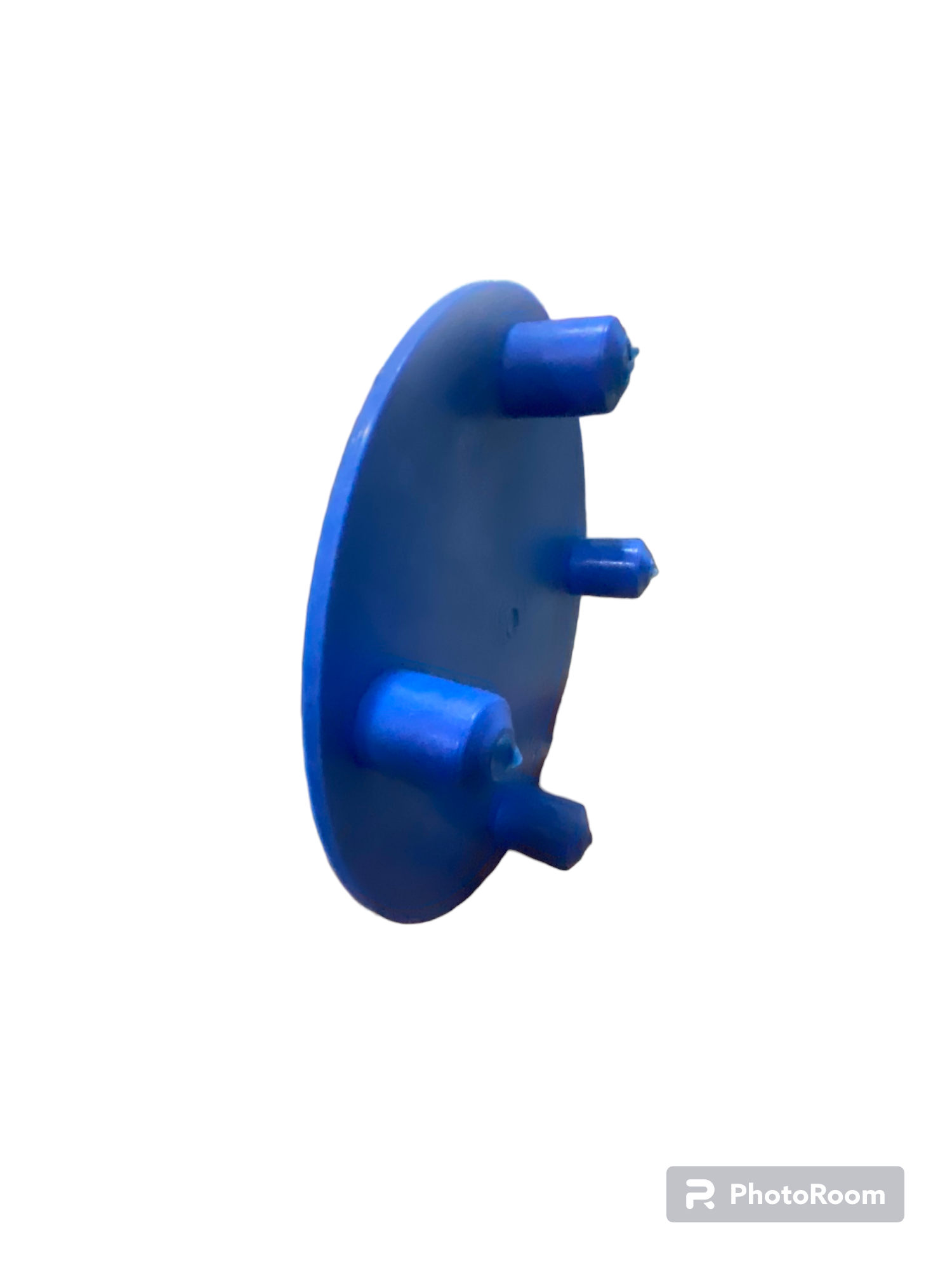

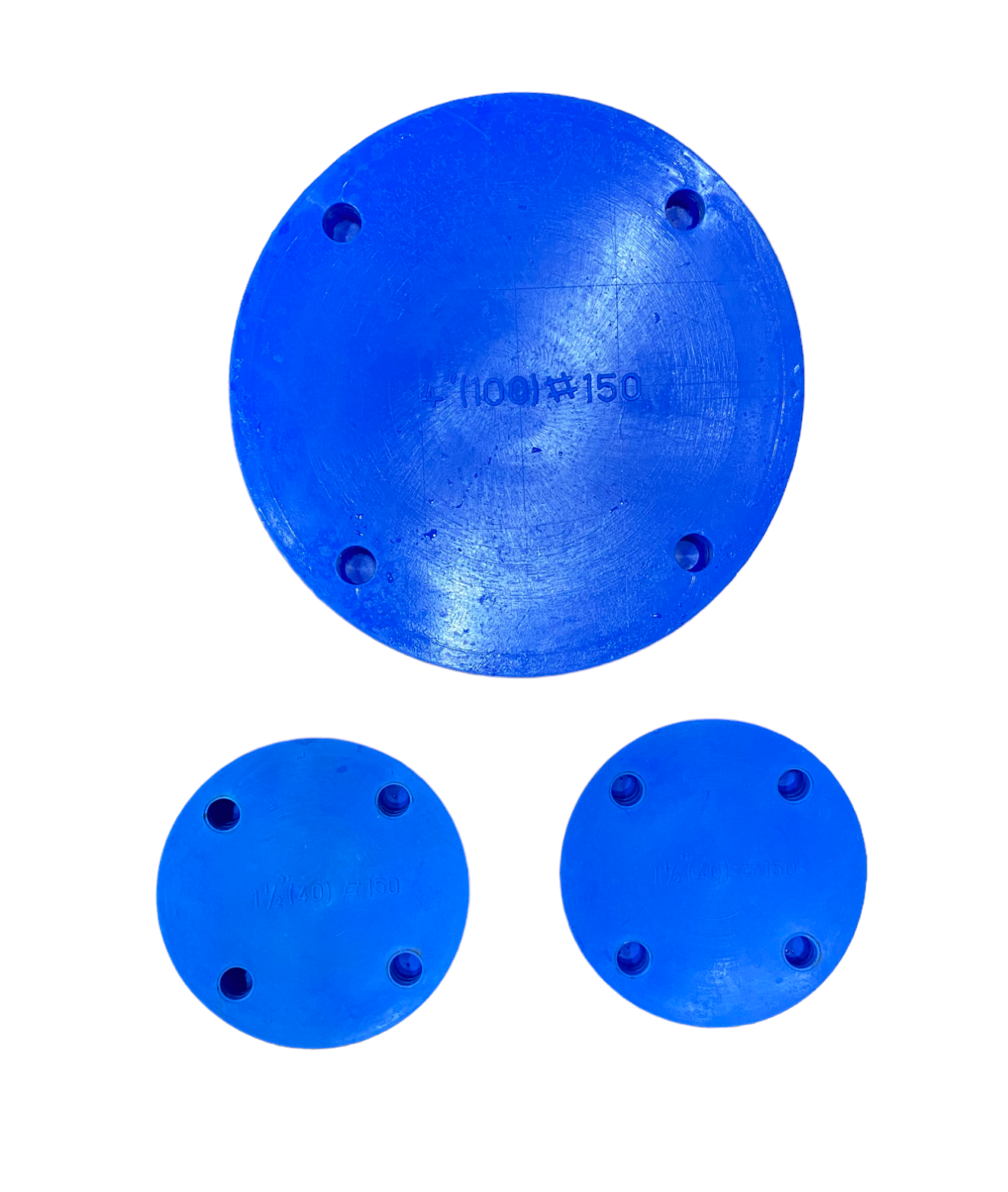

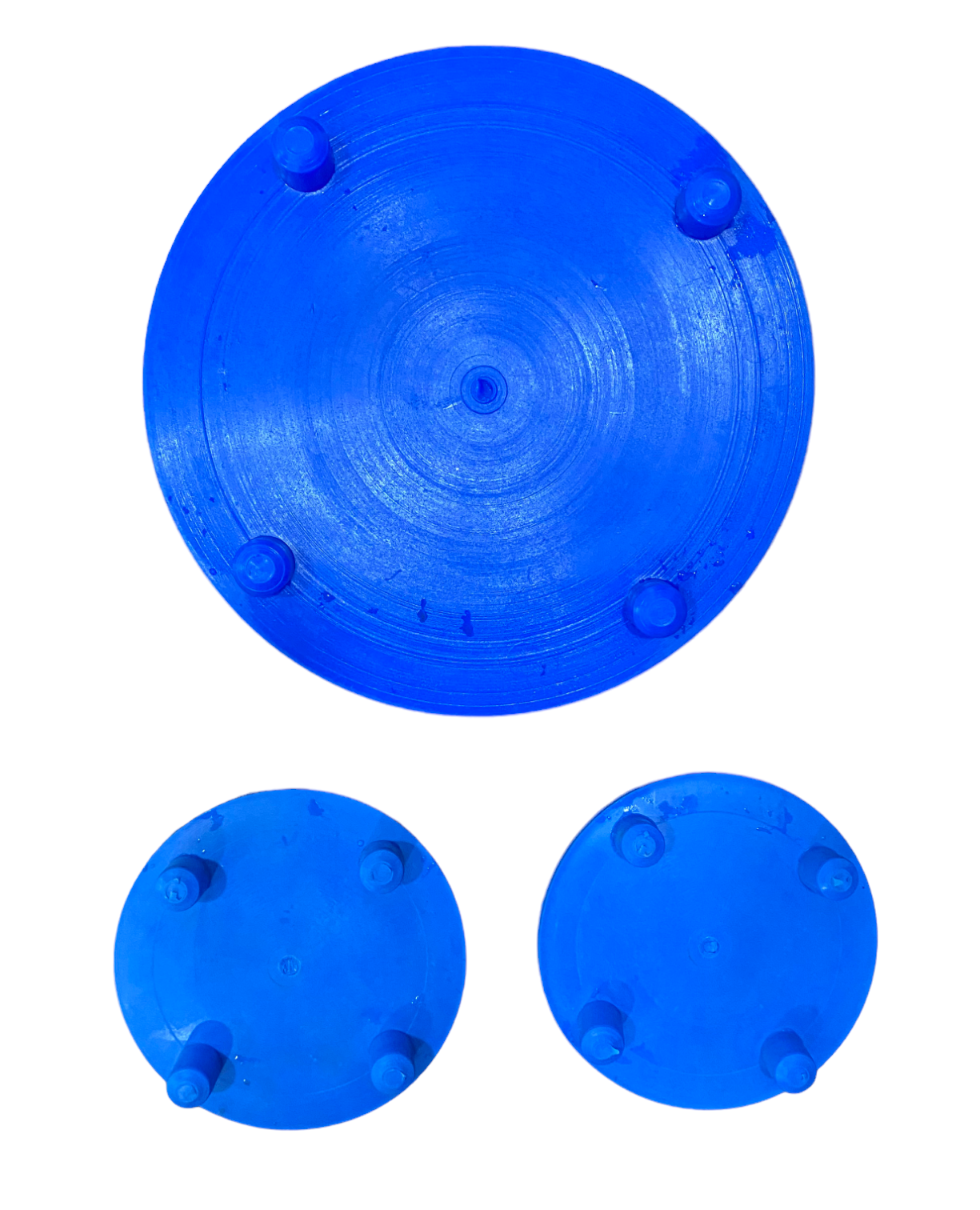

Full Flange Covers
It is a type of cover used to protect the entire face of a flange from environmental factors, such as dust, moisture, or corrosion. It is typically made of durable materials such as stainless steel, plastic, or rubber, and is designed to fit over the entire surface of the flange, including the bolts and nuts.
SIZE | O D | P C D | DRILL DIA |
1” | 108MM | 70.50MM | 16MM |
11/2” | 127MM | 98.55MM | 16MM |
2” | 152MM | 120.65MM | 19MM |
3” | 190MM | 152.40MM | 19MM |
4” | 228.6MM | 190MM | 19MM |
6” | 279.40MM | 241MM | 22.30MM |
8” | 342MM | 241.30MM | 22.30MM |
